IFlight ProTek60 Pro HD BLITZ F7 SucceX X80A DJI FPV Air Unit M8Q-5883 GPS XING2 3110 1600KV 6inch FPV 6S Cinelifter Drone

IFlight ProTek60 Pro HD BLITZ F7 SucceX X80A DJI FPV Air Unit M8Q-5883 GPS XING2 3110 1600KV 6inch FPV 6S Cinelifter Drone

$1,899.00 USD
$1,899.00 USD
Sale Sold out
Color

SPECIFICATIONS

Brand Name: IFLIGHT

Indoor/Outdoor Use: Indoor-Outdoor

Video Capture Resolution: 4K UHD

Camera Mount Type: Other

Controller Battery: not including

Origin: Mainland China

Aerial Photography: Yes

Control Channels: 6 CHANNEL

Controller Mode: MODE1

Controller Mode: MODE2

Recommend Age: 12+y

Material: Metal

Material: plastic

Remote Distance: about 2000meters

Package Includes: USB CABLE

Package Includes: Camera

Package Includes: Original Box

Package Includes: Operating Instructions

Remote Control: Yes

Type: HELICOPTER

Features: App-Controlled

Certification: CE

Model Number: ProTek60 Pro HD FPV Drone

Operator Skill Level: Beginner

Motor: Brushless Motor

Power Source: Electric




PRODUCT DESCRIPTION

Almost as if it came out of the "honey, I shrunk the kids" movie from 1989. Things are getting big!

Let's introduce our latest member to our ProTek family, the all-new iFlight ProTek60 Cinelifter!

We've came a long way with action cameras, offering outstanding quality with little weight and a small footprint. But do you want to get professional or shoot some commercials, maybe get into cinema videography? Well, then you need to step up your game. Those cameras offer higher quality but bigger lenses, higher weight in exchange with all the dynamic range, color profiles and crisp footage you might possibly want.

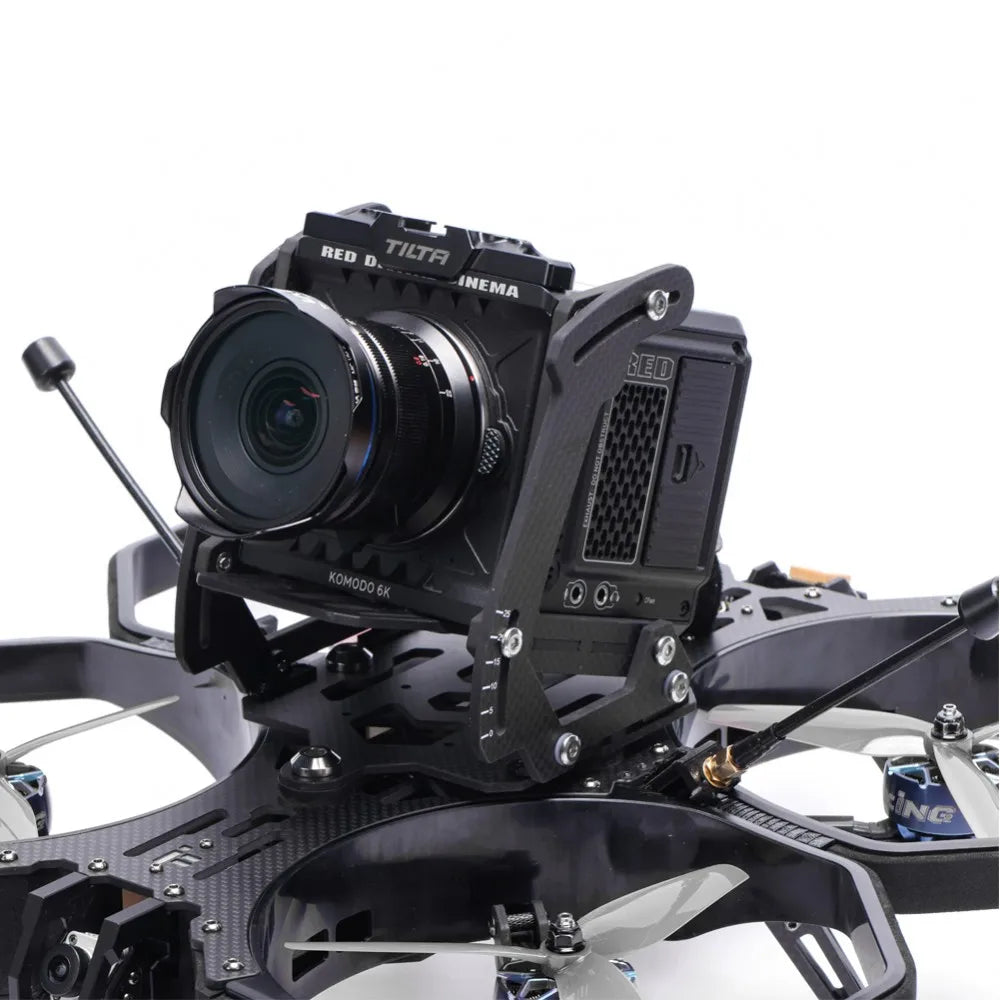

This rig was designed for a Komodo, Zcam, BMPCC or even a GH5. It fits right onto, safe and tight.

Recommended battery size: 6S 3700mAh - 6S 4400mAh

Estimated flight time: 3-6 min (depending on battery and your take-off weight)


Highlights and Features:

- Protected Propellers for indoor and outdoor use, protecting whatever you might bump into from nasty cuts

- Universal camera mount and accessories for a wide range of cameras to install

- iFlight ESC Commander PCB // Power distribution board with high capacitance and heat dissipation

- Single X-Class grade ESC motor drivers for more power and reliability

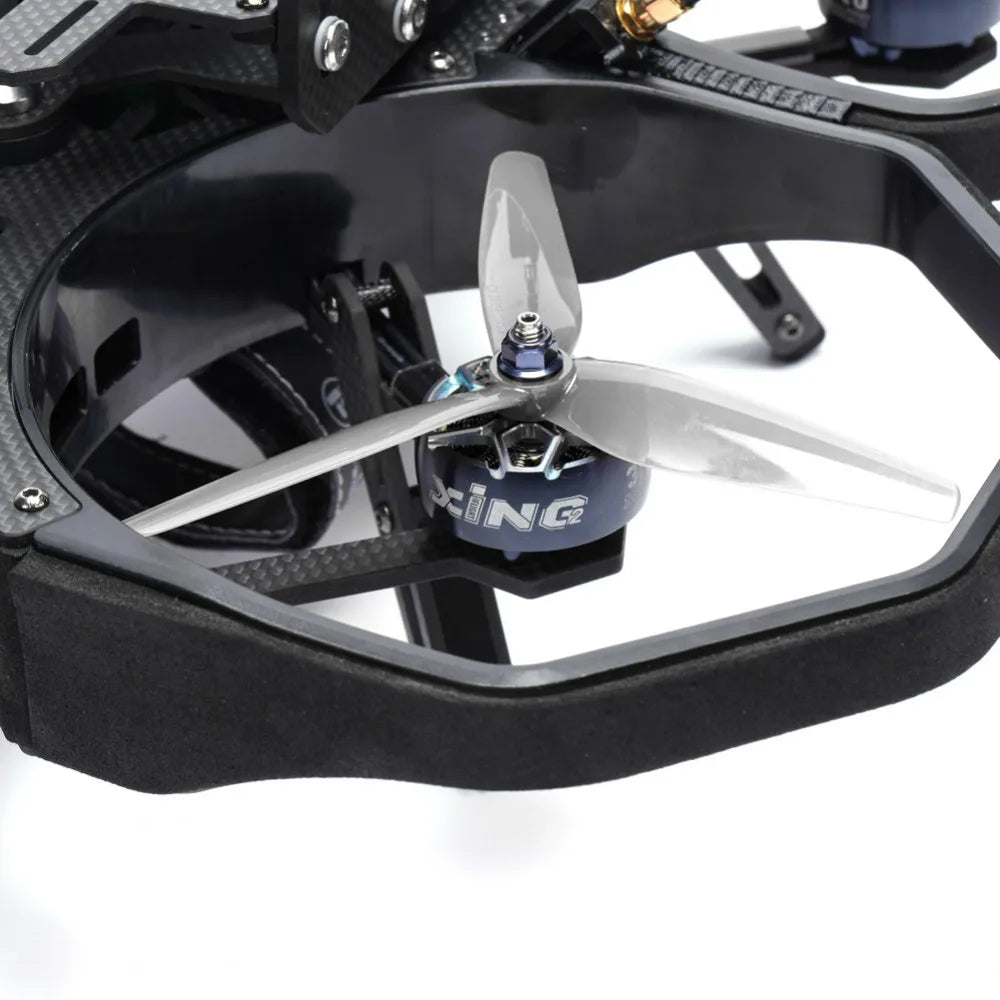

- Big size XING2 3110 // The power motors with extreme lift and flight performance

- GPS module pre-installed (BF GPS rescue or INAV GPS RTH feature available)

- up to 110 km/h // 1.5 kg payload // Total lift off weight up 3.5 kg (recommended max. MTOW)


ProTek60 Pro BNF Specs:

  • BLITZ F7 Flight Controller

  • SucceX X80A X-Class ESC

  • Motor: XING2 3110 1600KV

  • GPS module: iFlight M8Q-5883-GPS & Compass V2.0 (LINK)

  • Wheelbase: 282mm

  • Body Size: 380*351mm

  • Top and bottom plate spacing: 35mm (aluminum standoff height)

  • Propeller size: 6 inch

  • Weight: 1330g (without battery)


FC // BLITZ F7

  • MCU: STM32 F722

  • Gyro: MPU6000

  • Baro: NO

  • OSD: AT7456E

  • BEC:5V  2.5A

  • BlackBox:32MB

  • UARTs: 6

  • Smart audio / IRC Tramp VTX protocol supported

  • WS2812ledStrip: Yes

  • Bepper: Yes

  • Firmware Target: IFRC-IFLIGHT_BLITZ_F722

  • Mounting pattern: 30.5*30.5mm/φ4

  • Dimensions: 36.5*35mm

  • Weight: 7.8g


ESC // iFlight ESC Commander PCB (4x SucceX X80A)

  • MCU: G071

  • Capacitance per ESC: total 240UF Low ESR

  • Current Sensor: Yes

  • Input: 2-8S LIPO

  • BlHeli32 telemetry: Yes

  • BEC: No

  • Supports up to DShot DShot150/300/600/1200/MultiShot/OneShot PWM Drive

  • Firmware Target: iFlight-BL32-PRO

  • Weight:8.1g

  • Dimension: 40*17mm


ProTek60 Pro HD BNF Included Components and Parts


  • pre-built and tested ProTek60 Pro

  • 1 x Fullsend X 6S 70C 4400mAh

  • 1 x DJI FPV Air Unit Module + Camera

  • 2 x Albatross LHCP 5.8GHz 100mm SMA FPV Antenna

  • 4 x 6x4x3 Propellers  (Color may vary)

  • 2 x iFlight Lipo Strap 20*300mm (Black)

  • 1 x Prop Wrench

  • 1 x XT90 Male to XT60 Female Adapter Wire


Note:

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.



iFlight takes no responsibility for issues with DJI or Caddx 3rd party gear (Video transmitters, Goggles, Radios, etc) and must be directly reported to www.caddxfpv.com/pages/contact-us or www.dji.com/support.
