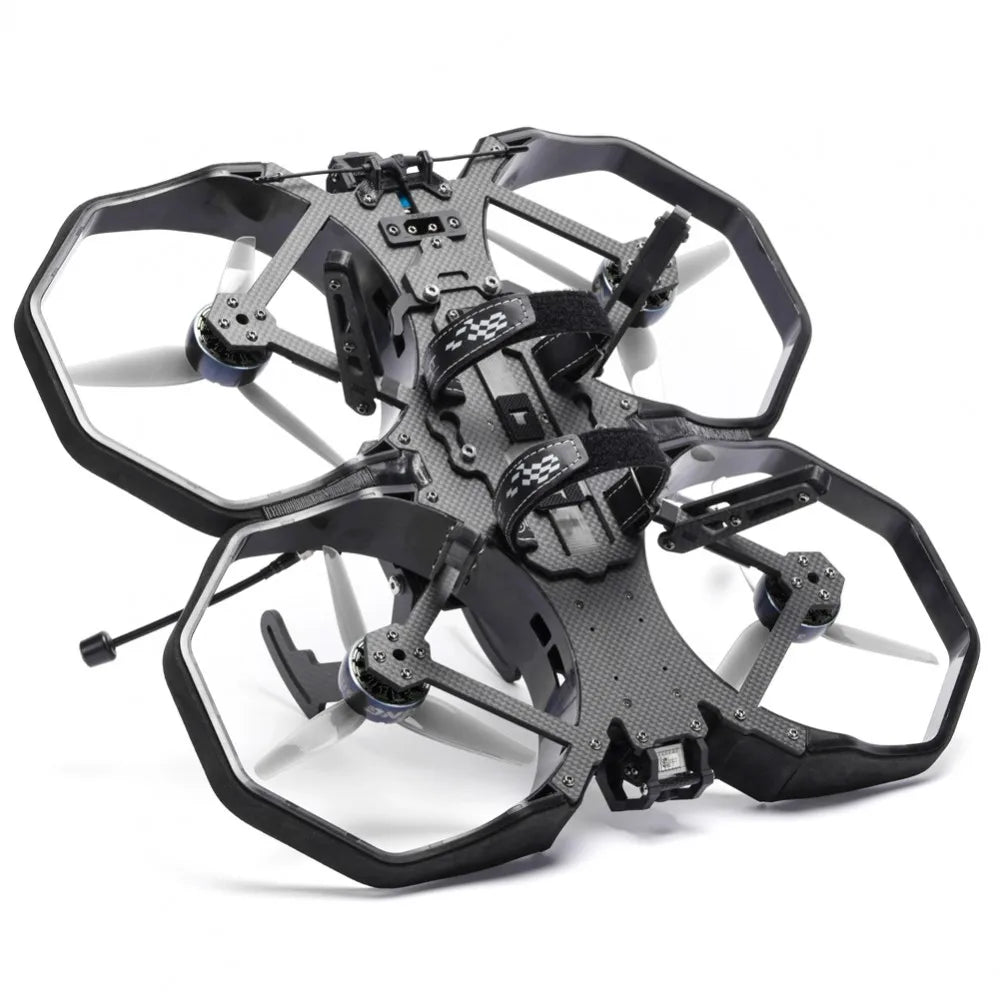

IFlight ProTek60 Pro HD BLITZ F7 SucceX X80A DJI FPV Air Unit M8Q-5883 GPS XING2 3110 1600KV 6S 6inch FPV Cinelifter Drone
IFlight ProTek60 Pro HD BLITZ F7 SucceX X80A DJI FPV Air Unit M8Q-5883 GPS XING2 3110 1600KV 6S 6inch FPV Cinelifter Drone
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: IFLIGHT
Indoor/Outdoor Use: Indoor-Outdoor
Video Capture Resolution: 4K UHD
Camera Mount Type: Other
Controller Battery: not including
Origin: Mainland China
Takeoff Weight: as description
Aerial Photography: Yes
Control Channels: 6 CHANNEL
Transit Time (Days): as description
Flight Time: 5~10
Controller Mode: MODE2
Controller Mode: MODE1
Recommend Age: 14+y
Anti-wind Ability: as description
Is Electric: lithium battery
Material: plastic
Material: Metal
Drone Weight: as description
Remote Distance: about 2000meters
Package Includes: Original Box
Package Includes: Camera
Package Includes: USB CABLE
Package Includes: Operating Instructions
Remote Control: Yes
Type: HELICOPTER
Features: App-Controlled
Certification: CE
Model Number: ProTek60 Pro HD FPV Drone
Operator Skill Level: Beginner
Motor: Brushless Motor
Power Source: Electric
IFlight ProTek60 Pro HD BLITZ F7 SucceX X80A DJI FPV Air Unit M8Q-5883 GPS XING2 3110 1600KV 6S 6inch FPV Cinelifter Drone
PRODUCT DESCRIPTION
We've come a long way with action cameras, offering outstanding quality with little weight and a small footprint. But do you want to get professional or shoot some commercials, maybe get into cinema videography? Well, then you need to step up your game. Those cameras offer higher quality but bigger lenses, higher weight in exchange for all the dynamic range, color profiles, and crisp footage you might possibly want.
The latest version of this drone is the ProTek60 Pro O3. It has been updated to support the for DJI O3 Air Unit.
Highlights and Features:
Protected Propellers for indoor and outdoor use, protecting whatever you might bump into from nasty cuts
for DJI O3 HD Air Unit Low-Latency Digital Transmission with 4K Stabilized Video with 155° Ultra-Wide Angle

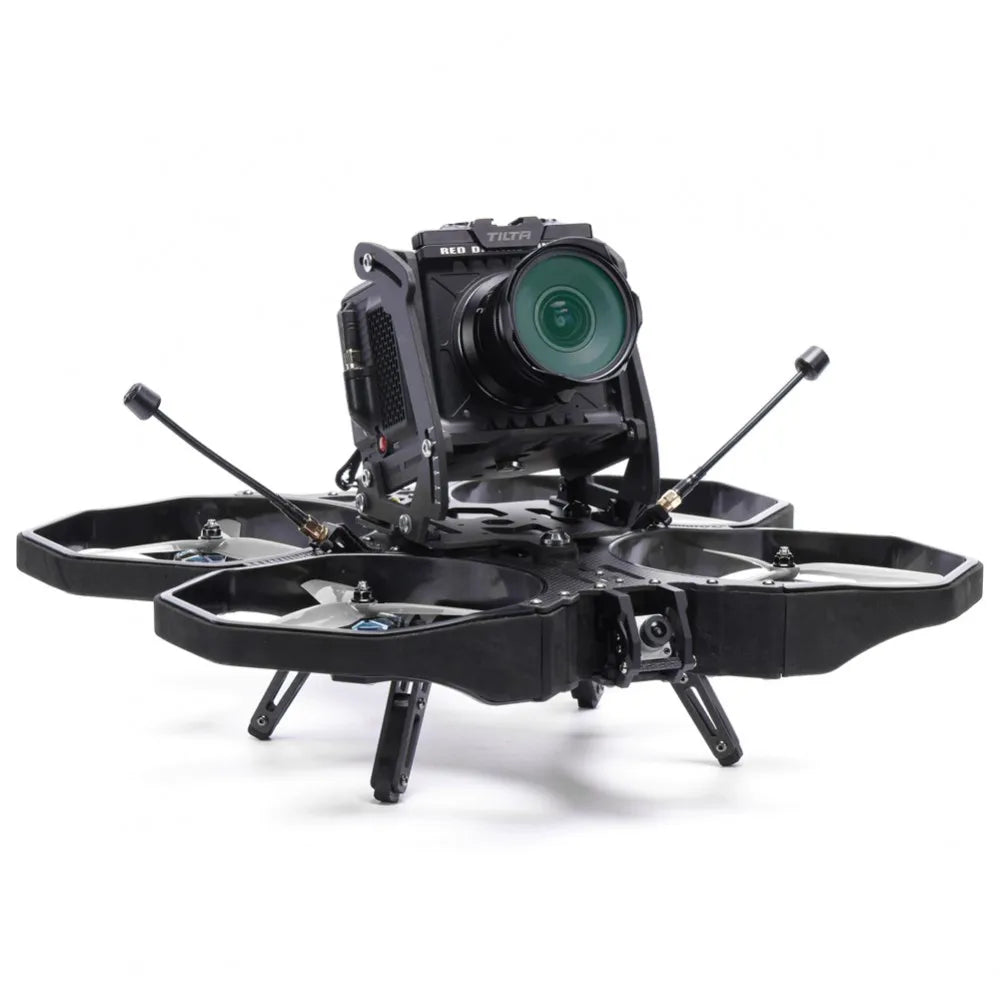

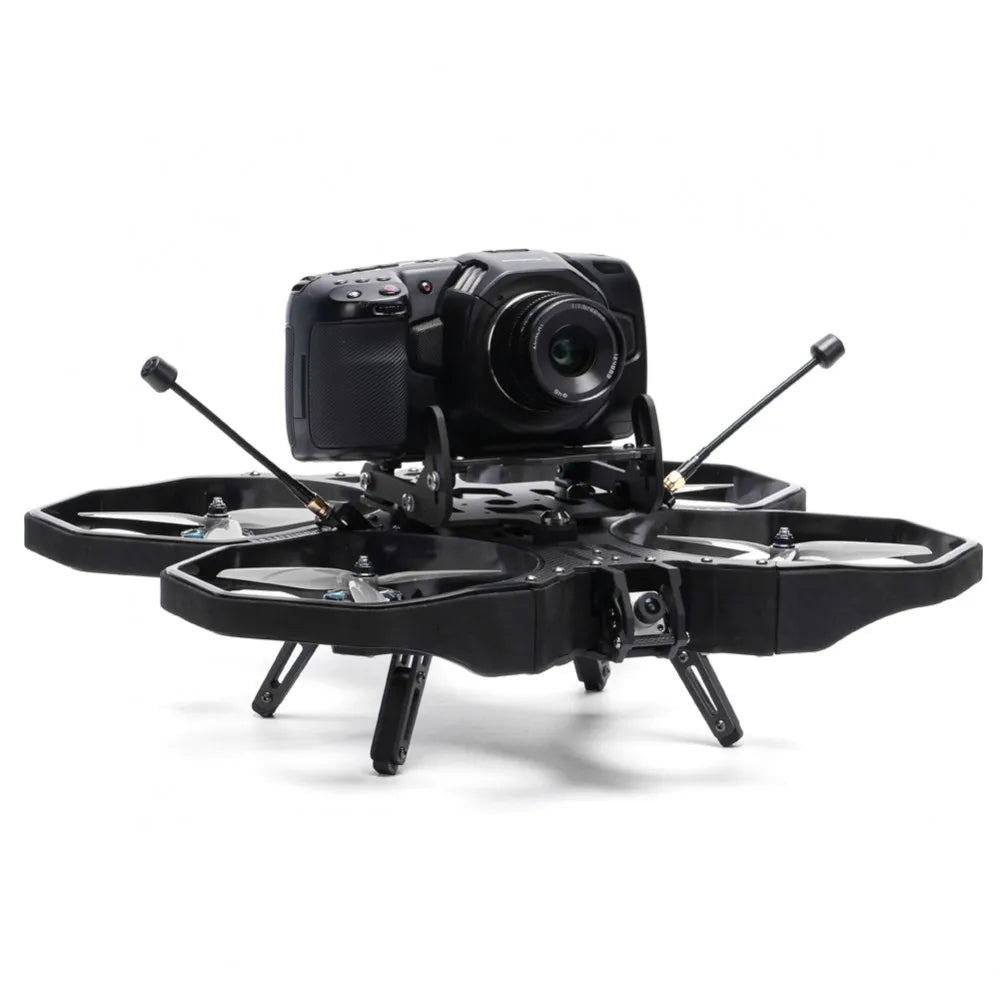

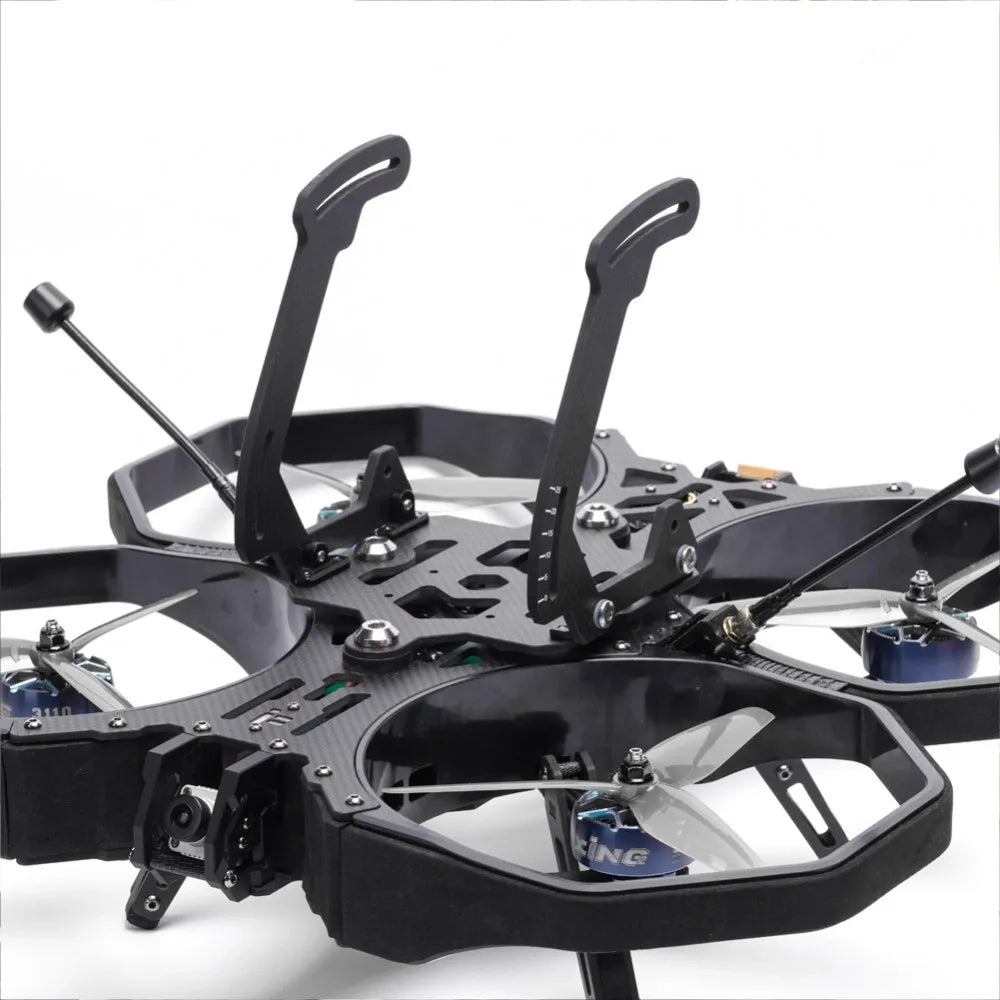

Universal camera mount and accessories for a wide range of cameras to install
Updated BLITZ E80 4-IN-1 ESC for more power and reliability
Big size XING2 3110 power motors with extreme lift and flight performance
BLITZ M10 GPS module pre-installed (BF GPS rescue or INAV GPS RTH feature available)
Camera Power Supply Module // IFlight Camera Power 12V 3A BEC Module Short-circuit Protection Function
ProTek60 Pro Specs:
Product Name: ProTek60 Pro O3
FC: BLITZ F7 Pro Flight Controller
ESC: BLITZ E80 4-IN-1 Pro ESC
Video Transmission: DJI O3 Air Unit

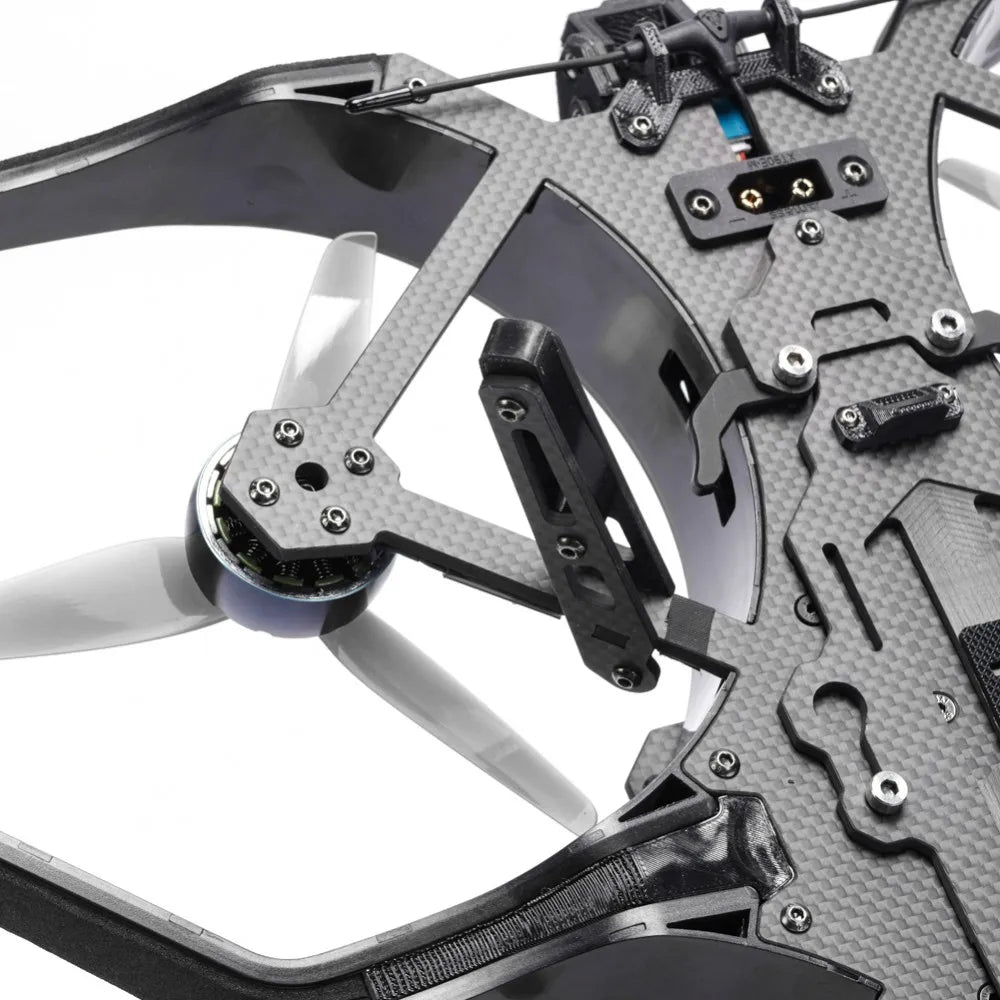

Frame: 282mm wheelbase
Motor: XING2 3110 1600KV motors
Prop: Nazgul 6x4x3 propellers
Weight：1466grams
Max Speed: 110 Km/H (Manual Mode)
Maximum Takeoff Altitude: 3200 m
Max Hover Time: Approx. 5.5 mins with 1.3KG load and 6S 4500mAh battery
Max Wind Speed Resistance: Level 6
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
GNSS: GPS + Galileo
Video Transmission
Product Name: for DJI O3 Air Unit
Weight: Approx. 36.4 grams（headband included）
Communication Bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication Frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End Latency
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A
Packing List
1 x ProTek60 Pro O3 BNF
1 x Nazgul 6x4x3 Propellers(Pairs)
2 x Albatross LHCP 5.8GHz SMA FPV Antenna
1 x XT90 Male to XT60 Female Adapter Wire
1 x Fullsend X 6S 5600mAh Battery
2 x Battery Strap
1 x XT90 Smart Smoke Stopper
1 x Prop Wrench
Note:
All iFlight BNFs are tested before shipment to guarantee the highest quality.
If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
iFlight takes no responsibility for issues with DJI or Caddx 3rd party gear (Video transmitters, Goggles, Radios, etc) and must be directly reported to www.caddxfpv.com/pages/contact-us or www.dji.com/support.
